一、学习之前先回答几个问题:
what:Appium是一款开源框架,生态丰富,社区强大,一直在被开发者维护;支持灵活的跨平台测
试,可以在IOS、Android、 Windows、Mac设备上进行移动应用的自动化测试运行,并且能
够使用相同的API编写多个平台的测试脚本。那么,Appium底层是怎样驱动手机进行操作的?
why:了解其原理虽然是一个有点晦涩难懂的过程,但是会在以下几个方面对我们产生极大的帮助:
1.应对面试:在大厂的面试过程中,面试官是非常喜欢询问一些原理性的知识,以测试候选人的研究能力。
2.分析与解决问题能力:Appium 由于其架构复杂,所以在安装与使用过程中会存在一些问题,掌握原理可以更好的分析问题出 现的原因,以及完成对应的解决方案。
3.二次开发与定制开发能力:了解原理与其设计之后,才可以根据 Appium 的设计进行插件的二次开发与定制。
4.提升架构能力:每学习一个新的框架与其设计原理,都可以更好的帮助我们提升设计模式与架构设计能力。
when:刚开始入手即可开始了解
where:排查问题
who: 测试专家必备
how:分析日志

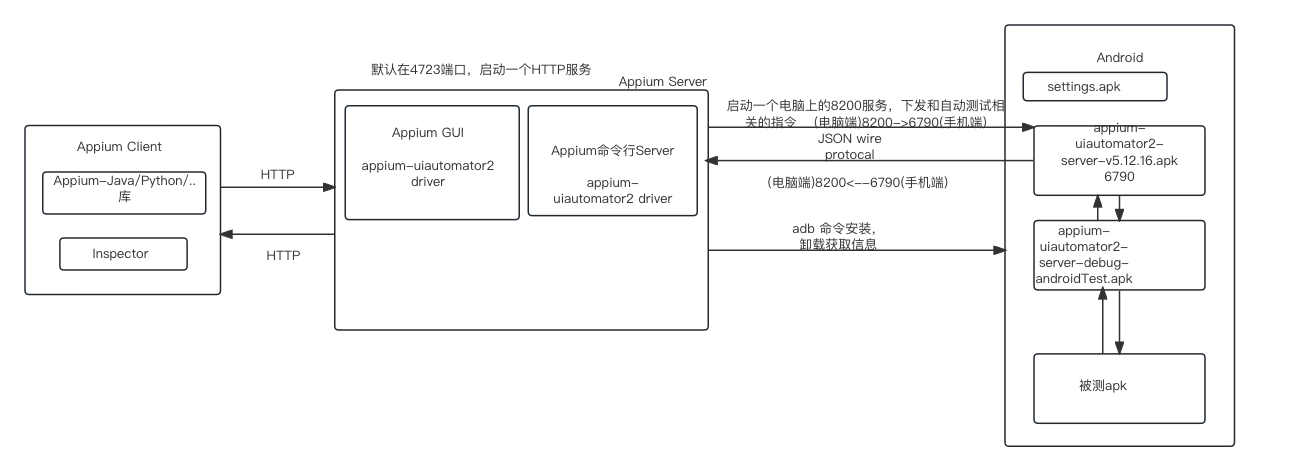

二、原理图:
三、Appium的设计主要分为三大模块:
1.Appium Client:将与Appium的各种交互封装为可被调用的API或工具,使用者可以通过Inspect或Java/Python/其他语言的Appium第三方库对Appium Server进行调用;
2.Appium Server:一个HTTP服务器,负责信息中转,接受到客户端的命令后,首先会解析命令,根据设备类型和平台,把命令(例如:ADB命令,自动化控制命令)转化为合适的形式,最后发送到移动终端执行。
3.End Device:执行自动化测试的移动设备
四、通讯过程分析
以Android为例,详细通讯过程如下图:
前提条件:
启动Appium Server,默认占用的端口是4723,主要作用是进行API请求的监听
Appium Client和Appium Server通信
客户端发送POST请求,要求创建driver会话,将声明的capabilities启动参数通过4723端口传递给Appium Server;
Appium Server基于capabilities中的automationName属性,重新定向到相应的驱动模块,如果automationName是uiautomator2,重定向到UIAutomator2 Driver,此时创建session会话并生成对应的sessionID。
Appium Server和End Device通信
首次通信安装3个apk
1.为了在android手机上运行应用程序,Appium需要有一定的权限来控制系统设置,所以会安装应用程序io.appium.settings,安装成功后,Appium Settings在后台运行;
2.由于使用的是UIAutomator2 Driver,所以要在Android手机上安装Driver相关的apk,即 appium-uiautomator2-server-xx.apk。
安装完成后,Appium Server的8200端口 和 Android设备端的6790端口建立映射,通过该映射的链路进行通讯。
3.appium-uiautomator2-server-debug-androidTest.apk,用于接收appium-uiautomator2-server-xx发送过来的自动化测试相关指令。
第二次及以后通信:
1.Appium Client发送操作指令给Appium Server
2.Appium Server通过appium-uiautomator2-driver发送JWP协议的请求给Android的appium-uiautomator2-server
3.appium-uiautomator2-server调用Android系统的Google UIAutomator2去执行自动化具体的操作
4.操作完成后返回结果对象AppiumResponse给appium-uiautomator2-driver,AppiumServer再返回给Client端,Client端得到最终执行操作的结果。
附上日志解析
# 电脑本地的环境检查
macdeMacBook-Pro:~ mac$ appium
[Appium] Welcome to Appium v2.2.3
[Appium] Attempting to load driver uiautomator2…
[Appium] Requiring driver at /Users/mac/.appium/node_modules/appium-uiautomator2-driver
# 启动4723服务,在电脑端
[Appium] Appium REST http interface listener started on http://0.0.0.0:4723
[Appium] You can provide the following URLs in your client code to connect to this server:
[Appium] http://127.0.0.1:4723/ (only accessible from the same host)
[Appium] http://192.168.0.100:4723/
# 发送HTTP请求,其中主要包含capabilities信息
[HTTP] → POST /session
[HTTP] {“capabilities”:{“firstMatch”:[{}],“alwaysMatch”:{“appium:appActivity”:“.launch.LaunchSplashActivity”,“appium:appPackage”:“com.tencent.wework”,“appium:automationName”:“UiAutomator2”,“appium:deviceName”:“emulator-5554”,“appium:newCommandTimeout”:“3600”,“appium:noReset”:true,“appium:platformVersion”:“6.0.1”,“platformName”:“ANDROID”}}}
# 创建Session
[AppiumDriver@84e2] Calling AppiumDriver.createSession() with args: [null,null,{“firstMatch”:[{}],“alwaysMatch”:{“appium:appActivity”:“.launch.LaunchSplashActivity”,“appium:appPackage”:“com.tencent.wework”,“appium:automationName”:“UiAutomator2”,“appium:deviceName”:“emulator-5554”,“appium:newCommandTimeout”:“3600”,“appium:noReset”:true,“appium:platformVersion”:“6.0.1”,“platformName”:“ANDROID”}}]
[AppiumDriver@84e2] Event ‘newSessionRequested’ logged at 1703670019455 (17:40:19 GMT+0800 (中国标准时间))
[Appium] Attempting to find matching driver for automationName ‘UiAutomator2’ and platformName ‘ANDROID’
[Appium] The ‘uiautomator2’ driver was installed and matched caps.
[Appium] Will require it at /Users/mac/.appium/node_modules/appium-uiautomator2-driver
[Appium] Requiring driver at /Users/mac/.appium/node_modules/appium-uiautomator2-driver
[AppiumDriver@84e2] Appium v2.2.3 creating new AndroidUiautomator2Driver (v2.35.0) session
[AppiumDriver@84e2] Checking BaseDriver versions for Appium and AndroidUiautomator2Driver
[AppiumDriver@84e2] Appium’s BaseDriver version is 9.4.3
[AppiumDriver@84e2] AndroidUiautomator2Driver’s BaseDriver version is 9.4.3
[AndroidUiautomator2Driver@d586] Creating session with W3C capabilities: {
[AndroidUiautomator2Driver@d586] “alwaysMatch”: {
[AndroidUiautomator2Driver@d586] “platformName”: “ANDROID”,
[AndroidUiautomator2Driver@d586] “appium:appActivity”: “.launch.LaunchSplashActivity”,
[AndroidUiautomator2Driver@d586] “appium:appPackage”: “com.tencent.wework”,
[AndroidUiautomator2Driver@d586] “appium:automationName”: “UiAutomator2”,
[AndroidUiautomator2Driver@d586] “appium:deviceName”: “emulator-5554”,
[AndroidUiautomator2Driver@d586] “appium:newCommandTimeout”: “3600”,
[AndroidUiautomator2Driver@d586] “appium:noReset”: true,
[AndroidUiautomator2Driver@d586] “appium:platformVersion”: “6.0.1”
[AndroidUiautomator2Driver@d586] },
[AndroidUiautomator2Driver@d586] “firstMatch”: [
[AndroidUiautomator2Driver@d586] {}
[AndroidUiautomator2Driver@d586] ]
[AndroidUiautomator2Driver@d586] }
[BaseDriver] Number capability passed in as string. Functionality may be compromised.
[AndroidUiautomator2Driver@d586] Capability ‘newCommandTimeout’ changed from string (‘3600’) to integer (3600). This may cause unexpected behavior
[AndroidUiautomator2Driver@d586 (3bb496c0)] Session created with session id: 3bb496c0-125f-4336-a999-dc73552bb1f0
[AndroidUiautomator2Driver@d586 (3bb496c0)] Starting ‘com.tencent.wework’ directly on the device
# 检查ADB 环境,以及使用ADB的过程
[ADB] Found 2 ‘build-tools’ folders under ‘/Users/mac/Library/Android/sdk’ (newest first):
[ADB] /Users/mac/Library/Android/sdk/build-tools/34.0.0
[ADB] /Users/mac/Library/Android/sdk/build-tools/27.0.3
[ADB] Using ‘adb’ from ‘/Users/mac/Library/Android/sdk/platform-tools/adb’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 start-server’
[AndroidDriver] Retrieving device list
[ADB] Trying to find connected Android devices
[ADB] Getting connected devices
[ADB] Connected devices: [{“udid”:“emulator-5554”,“state”:“device”}]
[AndroidDriver] Looking for a device with Android ‘6.0.1’
[ADB] Setting device id to emulator-5554
[ADB] Getting device platform version
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell getprop ro.build.version.release’
[ADB] Current device property ‘ro.build.version.release’: 6.0.1
[AndroidDriver] Using device: emulator-5554
[ADB] Using ‘adb’ from ‘/Users/mac/Library/Android/sdk/platform-tools/adb’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 start-server’
[ADB] Setting device id to emulator-5554
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell getprop ro.build.version.sdk’
[ADB] Current device property ‘ro.build.version.sdk’: 23
[ADB] Device API level: 23
[AndroidDriver] No app sent in, not parsing package/activity
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 wait-for-device’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell echo ping’
# Appium 相关依赖的apk - io.appium.settings
[AndroidDriver] Pushing settings apk to device…
[ADB] Getting package info for ‘io.appium.settings’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell dumpsys package io.appium.settings’
[ADB] App ‘/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/io.appium.settings/apks/settings_apk-debug.apk’ is not installed
[ADB] Installing ‘/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/io.appium.settings/apks/settings_apk-debug.apk’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 help’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 features’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell ‘ls -t -1 /data/local/tmp/appium_cache 2>&1 || echo ERROR’’
[ADB] The current Android API does not support extended ls options. Defaulting to no-options call
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell ‘ls /data/local/tmp/appium_cache 2>&1 || echo ERROR’’
[ADB] The count of applications in the cache: 6
[ADB] The application at ‘/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/io.appium.settings/apks/settings_apk-debug.apk’ is already cached to ‘/data/local/tmp/appium_cache/7d68c635eb5a75702b971029667f8fe38c96b32c.apk’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell touch -am /data/local/tmp/appium_cache/7d68c635eb5a75702b971029667f8fe38c96b32c.apk’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell pm install -g /data/local/tmp/appium_cache/7d68c635eb5a75702b971029667f8fe38c96b32c.apk’
[ADB] The installation of ‘settings_apk-debug.apk’ took 708ms
[ADB] Install command stdout: pkg: /data/local/tmp/appium_cache/7d68c635eb5a75702b971029667f8fe38c96b32c.apk
[ADB] Success
[ADB] Getting IDs of all ‘io.appium.settings’ processes
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell ‘pgrep --help; echo $?’’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell pgrep -f ([[:blank:]]|^)io.appium.settings([[:blank:]]|$)’
[AndroidDriver] Granting permissions SET_ANIMATION_SCALE,CHANGE_CONFIGURATION,ACCESS_FINE_LOCATION to ‘io.appium.settings’
[ADB] Granting permissions [“android.permission.SET_ANIMATION_SCALE”,“android.permission.CHANGE_CONFIGURATION”,“android.permission.ACCESS_FINE_LOCATION”] to ‘io.appium.settings’
[ADB] Got the following command chunks to execute: [[“pm”,“grant”,“io.appium.settings”,“android.permission.SET_ANIMATION_SCALE”,“;”,“pm”,“grant”,“io.appium.settings”,“android.permission.CHANGE_CONFIGURATION”,“;”,“pm”,“grant”,“io.appium.settings”,“android.permission.ACCESS_FINE_LOCATION”,“;”]]
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell pm grant io.appium.settings android.permission.SET_ANIMATION_SCALE ; pm grant io.appium.settings android.permission.CHANGE_CONFIGURATION ; pm grant io.appium.settings android.permission.ACCESS_FINE_LOCATION ;’
[ADB] Getting IDs of all ‘io.appium.settings’ processes
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell pgrep -f ([[:blank:]]|^)io.appium.settings([[:blank:]]|$)’
[ADB] Starting Appium Settings app
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell am start -n io.appium.settings/.Settings -a android.intent.action.MAIN -c android.intent.category.LAUNCHER’
[ADB] Getting IDs of all ‘io.appium.settings’ processes
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell pgrep -f ([[:blank:]]|^)io.appium.settings([[:blank:]]|$)’
[Logcat] Starting logs capture with command: /Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 logcat -v threadtime
# 端口映射,从本地端口的 8200 转发到 移动端的6790端口
[AndroidUiautomator2Driver@d586 (3bb496c0)] Forwarding UiAutomator2 Server port 6790 to local port 8200
[ADB] Forwarding system: 8200 to device: 6790
# Appium 相关依赖的apk appium-uiautomator2-server-v5.12.17.apk 以及 appium-uiautomator2-server-debug-androidTest.apk
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 forward tcp:8200 tcp:6790’
[ADB] Checking app cert for /Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-v5.12.17.apk
[ADB] Checking app cert for /Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-debug-androidTest.apk
[ADB] Using ‘apksigner.jar’ from ‘/Users/mac/Library/Android/sdk/build-tools/34.0.0/lib/apksigner.jar’
[ADB] Starting apksigner: /Library/Java/JavaVirtualMachines/jdk-11.jdk/Contents/Home/bin/java -Xmx1024M -Xss1m -jar /Users/mac/Library/Android/sdk/build-tools/34.0.0/lib/apksigner.jar verify --print-certs /Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-debug-androidTest.apk
[ADB] Starting apksigner: /Library/Java/JavaVirtualMachines/jdk-11.jdk/Contents/Home/bin/java -Xmx1024M -Xss1m -jar /Users/mac/Library/Android/sdk/build-tools/34.0.0/lib/apksigner.jar verify --print-certs /Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-v5.12.17.apk
[ADB] apksigner stdout: Signer #1 certificate DN: EMAILADDRESS=android@android.com, CN=Android, OU=Android, O=Android, L=Mountain View, ST=California, C=US
[ADB] Signer #1 certificate SHA-256 digest: a40da80a59d170caa950cf15c18c454d47a39b26989d8b640ecd745ba71bf5dc
[ADB] Signer #1 certificate SHA-1 digest: 61ed377e85d386a8dfee6b864bd85b0bfaa5af81
[ADB] Signer #1 certificate MD5 digest: e89b158e4bcf988ebd09eb83f5378e87
[ADB]
[ADB] sha256 hash did match for ‘appium-uiautomator2-server-debug-androidTest.apk’
[ADB] ‘/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-debug-androidTest.apk’ is signed with the default certificate
[ADB] Getting install status for io.appium.uiautomator2.server.test
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell pm path io.appium.uiautomator2.server.test’
[ADB] ‘io.appium.uiautomator2.server.test’ is installed
[ADB] apksigner stdout: Signer #1 certificate DN: EMAILADDRESS=android@android.com, CN=Android, OU=Android, O=Android, L=Mountain View, ST=California, C=US
[ADB] Signer #1 certificate SHA-256 digest: a40da80a59d170caa950cf15c18c454d47a39b26989d8b640ecd745ba71bf5dc
[ADB] Signer #1 certificate SHA-1 digest: 61ed377e85d386a8dfee6b864bd85b0bfaa5af81
[ADB] Signer #1 certificate MD5 digest: e89b158e4bcf988ebd09eb83f5378e87
[ADB]
[ADB] sha256 hash did match for ‘appium-uiautomator2-server-v5.12.17.apk’
[ADB] ‘/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-v5.12.17.apk’ is signed with the default certificate
[ADB] Getting package info for ‘io.appium.uiautomator2.server’
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell dumpsys package io.appium.uiautomator2.server’
[ADB] The version name of the installed ‘io.appium.uiautomator2.server’ is greater or equal to the application version name (‘5.12.17’ >= ‘5.12.17’)
[AndroidUiautomator2Driver@d586 (3bb496c0)] Server packages status: [{“wasSigned”:true,“installState”:“sameVersionInstalled”,“appPath”:“/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-v5.12.17.apk”,“appId”:“io.appium.uiautomator2.server”},{“wasSigned”:true,“installState”:“sameVersionInstalled”,“appPath”:“/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-debug-androidTest.apk”,“appId”:“io.appium.uiautomator2.server.test”}]
[AndroidUiautomator2Driver@d586 (3bb496c0)] Server packages are not going to be (re)installed
[AndroidUiautomator2Driver@d586 (3bb496c0)] Waiting up to 30000ms for services to be available
#列出含有单元测试 case 的应用
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell pm list instrumentation’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Instrumentation target ‘io.appium.uiautomator2.server.test/androidx.test.runner.AndroidJUnitRunner’ is available
[ADB] Adding packages [“io.appium.settings”,“io.appium.uiautomator2.server”,“io.appium.uiautomator2.server.test”] to Doze whitelist
[ADB] Got the following command chunks to execute: [[“dumpsys”,“deviceidle”,“whitelist”,“+io.appium.settings”,“;”,“dumpsys”,“deviceidle”,“whitelist”,“+io.appium.uiautomator2.server”,“;”,“dumpsys”,“deviceidle”,“whitelist”,“+io.appium.uiautomator2.server.test”,“;”]]
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell dumpsys deviceidle whitelist +io.appium.settings ; dumpsys deviceidle whitelist +io.appium.uiautomator2.server ; dumpsys deviceidle whitelist +io.appium.uiautomator2.server.test ;’
[AndroidUiautomator2Driver@d586 (3bb496c0)] No app capability. Assuming it is already on the device
[AndroidUiautomator2Driver@d586 (3bb496c0)] Performing shallow cleanup of automation leftovers
[AndroidUiautomator2Driver@d586 (3bb496c0)] No obsolete sessions have been detected (socket hang up)
# 启动 UIAutomator2 server
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell am force-stop io.appium.uiautomator2.server.test’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Starting UIAutomator2 server 5.12.17
[AndroidUiautomator2Driver@d586 (3bb496c0)] Using UIAutomator2 server from ‘/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-v5.12.17.apk’ and test from ‘/Users/mac/.appium/node_modules/appium-uiautomator2-driver/node_modules/appium-uiautomator2-server/apks/appium-uiautomator2-server-debug-androidTest.apk’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Waiting up to 30000ms for UiAutomator2 to be online…
[ADB] Creating ADB subprocess with args: [“-P”,“5037”,“-s”,“emulator-5554”,“shell”,“am”,“instrument”,“-w”,“-e”,“disableAnalytics”,“true”,“io.appium.uiautomator2.server.test/androidx.test.runner.AndroidJUnitRunner”]
[AndroidUiautomator2Driver@d586 (3bb496c0)] Matched ‘/status’ to command name ‘getStatus’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [GET /status] to [GET http://127.0.0.1:8200/status] with no body
[AndroidUiautomator2Driver@d586 (3bb496c0)] socket hang up
[Instrumentation] io.appium.uiautomator2.server.test.AppiumUiAutomator2Server:
[AndroidUiautomator2Driver@d586 (3bb496c0)] Matched ‘/status’ to command name ‘getStatus’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [GET /status] to [GET http://127.0.0.1:8200/status] with no body
[AndroidUiautomator2Driver@d586 (3bb496c0)] socket hang up
[AndroidUiautomator2Driver@d586 (3bb496c0)] Matched ‘/status’ to command name ‘getStatus’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [GET /status] to [GET http://127.0.0.1:8200/status] with no body
[AndroidUiautomator2Driver@d586 (3bb496c0)] Got response with status 200: {“sessionId”:“None”,“value”:{“message”:“UiAutomator2 Server is ready to accept commands”,“ready”:true}}
# 初始化
[AndroidUiautomator2Driver@d586 (3bb496c0)] The initialization of the instrumentation process took 2077ms
[AndroidUiautomator2Driver@d586 (3bb496c0)] Matched ‘/session’ to command name ‘createSession’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [POST /session] to [POST http://127.0.0.1:8200/session] with body: {“capabilities”:{“firstMatch”:[{“platformName”:“ANDROID”,“appActivity”:“.launch.LaunchSplashActivity”,“appPackage”:“com.tencent.wework”,“automationName”:“UiAutomator2”,“deviceName”:“emulator-5554”,“newCommandTimeout”:3600,“noReset”:true,“platformVersion”:“6.0.1”,“platform”:“LINUX”,“webStorageEnabled”:false,“takesScreenshot”:true,“javascriptEnabled”:true,“databaseEnabled”:false,“networkConnectionEnabled”:true,“locationContextEnabled”:false,“warnings”:{},“desired”:{“platformName”:“ANDROID”,“appActivity”:“.launch.LaunchSplashActivity”,“appPackage”:“com.tencent.wework”,“automationName”:“UiAutomator2”,“deviceName”:“emulator-5554”,“newCommandTimeout”:3600,“noReset”:true,“platformVersion”:“6.0.1”},“deviceUDID”:“emulator-5554”}],“alwaysMatch”:{}}}
[AndroidUiautomator2Driver@d586 (3bb496c0)] Got response with status 200: {“sessionId”:“affd4a01-da6f-433e-b4c1-d87648372186”,“value”:{“capabilities”:{“firstMatch”:[{“platformName”:“ANDROID”,“appActivity”:“.launch.LaunchSplashActivity”,“appPackage”:“com.tencent.wework”,“automationName”:“UiAutomator2”,“deviceName”:“emulator-5554”,“newCommandTimeout”:3600,“noReset”:true,“platformVersion”:“6.0.1”,“platform”:“LINUX”,“webStorageEnabled”:false,“takesScreenshot”:true,“javascriptEnabled”:true,“databaseEnabled”:false,“networkConnectionEnabled”:true,“locationContextEnabled”:false,“warnings”:{},“desired”:{“platformName”:“ANDROID”,“appActivity”:“.launch.LaunchSplashActivity”,“appPackage”:“com.tencent.wework”,“automationName”:“UiAutomator2”,“deviceName”:“emulator-5554”,“newCommandTimeout”:3600,“noReset”:true,“platformVersion”:“6.0.1”},“deviceUDID”:“emulator-5554”}],“alwaysMatch”:{}},“sessionId”:“affd4a01-da6f-433e-b4c1-d87648372186”}}
[AndroidUiautomator2Driver@d586 (3bb496c0)] Determined the downstream protocol as ‘W3C’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [GET /appium/device/pixel_ratio] to [GET http://127.0.0.1:8200/session/affd4a01-da6f-433e-b4c1-d87648372186/appium/device/pixel_ratio] with no body
[AndroidUiautomator2Driver@d586 (3bb496c0)] Matched ‘/appium/device/system_bars’ to command name ‘getSystemBars’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [GET /appium/device/system_bars] to [GET http://127.0.0.1:8200/session/affd4a01-da6f-433e-b4c1-d87648372186/appium/device/system_bars] with no body
[AndroidUiautomator2Driver@d586 (3bb496c0)] Matched ‘/window/current/size’ to command name ‘getWindowSize’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [GET /window/current/size] to [GET http://127.0.0.1:8200/session/affd4a01-da6f-433e-b4c1-d87648372186/window/current/size] with no body
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [GET /appium/device/info] to [GET http://127.0.0.1:8200/session/affd4a01-da6f-433e-b4c1-d87648372186/appium/device/info] with no body
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell dumpsys window’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Got response with status 200: {“sessionId”:“affd4a01-da6f-433e-b4c1-d87648372186”,“value”:2}
[AndroidUiautomator2Driver@d586 (3bb496c0)] Got response with status 200: {“sessionId”:“affd4a01-da6f-433e-b4c1-d87648372186”,“value”:{“statusBar”:48}}
[AndroidUiautomator2Driver@d586 (3bb496c0)] Got response with status 200: {“sessionId”:“affd4a01-da6f-433e-b4c1-d87648372186”,“value”:{“height”:1280,“width”:720}}
[AndroidDriver] Screen already unlocked, doing nothing
[AndroidUiautomator2Driver@d586 (3bb496c0)] Starting 'com.tencent.wework/.launch.LaunchSplashActivity and waiting for ‘com.tencent.wework/.launch.LaunchSplashActivity’
# 使用ADB启动被测apk
[ADB] Running ‘/Users/mac/Library/Android/sdk/platform-tools/adb -P 5037 -s emulator-5554 shell am start -W -n com.tencent.wework/.launch.LaunchSplashActivity -S -a android.intent.action.MAIN -c android.intent.category.LAUNCHER -f 0x10200000’
[AppiumDriver@84e2] New AndroidUiautomator2Driver session created successfully, session 3bb496c0-125f-4336-a999-dc73552bb1f0 added to master session list
[AppiumDriver@84e2] Event ‘newSessionStarted’ logged at 1703670038613 (17:40:38 GMT+0800 (中国标准时间))
[AndroidUiautomator2Driver@d586 (3bb496c0)] Cached the protocol value ‘W3C’ for the new session 3bb496c0-125f-4336-a999-dc73552bb1f0
[AndroidUiautomator2Driver@d586 (3bb496c0)] Responding to client with driver.createSession() result: {“capabilities”:{“platformName”:“ANDROID”,“appActivity”:“.launch.LaunchSplashActivity”,“appPackage”:“com.tencent.wework”,“automationName”:“UiAutomator2”,“deviceName”:“emulator-5554”,“newCommandTimeout”:3600,“noReset”:true,“platformVersion”:“6.0.1”,“platform”:“LINUX”,“webStorageEnabled”:false,“takesScreenshot”:true,“javascriptEnabled”:true,“databaseEnabled”:false,“networkConnectionEnabled”:true,“locationContextEnabled”:false,“warnings”:{},“desired”:{“platformName”:“ANDROID”,“appActivity”:“.launch.LaunchSplashActivity”,“appPackage”:“com.tencent.wework”,“automationName”:“UiAutomator2”,“deviceName”:“emulator-5554”,“newCommandTimeout”:3600,“noReset”:true,“platformVersion”:“6.0.1”},“deviceUDID”:“emulator-5554”,“pixelRatio”:“2”,“statBarHeight”:48,“viewportRect”:{“left”:0,“top”:48,“width”:720,“height”:1232},“deviceApiLevel”:23,“deviceManufacturer”:“Netease”,“deviceModel”:“MuMu”,“deviceScreenSize”:“720x1280”,“deviceScreenDensity”:320}}
[HTTP] ← POST /session 200 19164 ms - 1001
[HTTP]
#查找元素
[HTTP] → POST /session/3bb496c0-125f-4336-a999-dc73552bb1f0/element
[HTTP] {“using”:“xpath”,“value”:“//*[@text=‘通讯录’]”}
[AndroidUiautomator2Driver@d586 (3bb496c0)] Calling AppiumDriver.findElement() with args: [“xpath”,“//*[@text=‘通讯录’]”,“3bb496c0-125f-4336-a999-dc73552bb1f0”]
[AndroidUiautomator2Driver@d586 (3bb496c0)] Valid locator strategies for this request: xpath, id, class name, accessibility id, css selector, -android uiautomator
[AndroidUiautomator2Driver@d586 (3bb496c0)] Waiting up to 3000 ms for condition
[AndroidUiautomator2Driver@d586 (3bb496c0)] Matched ‘/element’ to command name ‘findElement’
[AndroidUiautomator2Driver@d586 (3bb496c0)] Proxying [POST /element] to [POST http://127.0.0.1:8200/session/affd4a01-da6f-433e-b4c1-d87648372186/element] with body: {“strategy”:“xpath”,“selector”:“//*[@text=‘通讯录’]”,“context”:“”,“multiple”:false}
