app自动化训练营

开营仪式

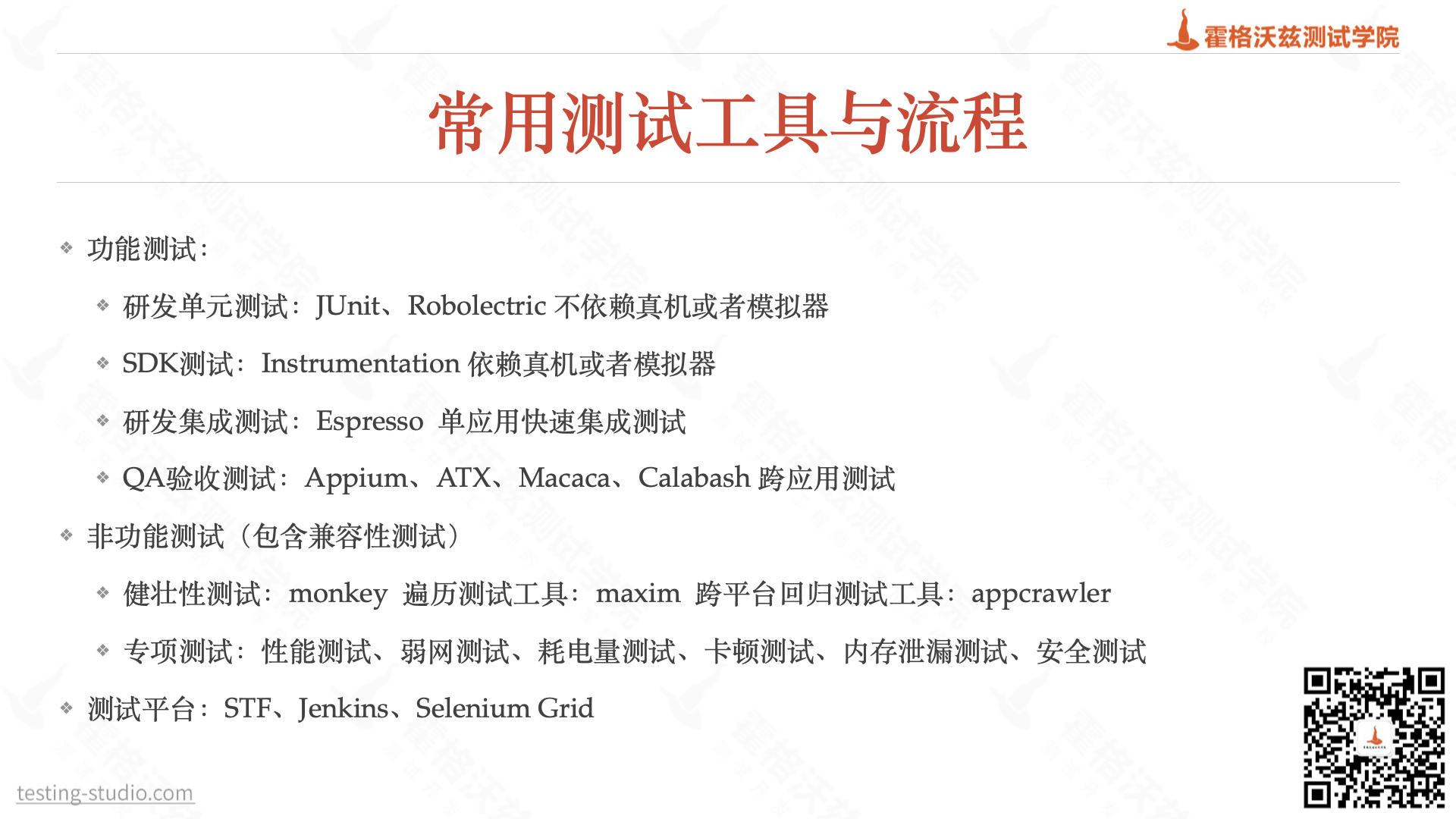

ppt截图

adb

adb shell 'uiautomator dump && cat /sdcard/window_dump.xml'
seveniruby:~ seveniruby$ adb logcat | grep Displayed
05-27 21:14:19.140   553   578 I ActivityTaskManager: Displayed com.xueqiu.android/.view.WelcomeActivityAlias: +707ms
05-27 21:14:23.324   553   578 I ActivityTaskManager: Displayed com.xueqiu.android/.common.MainActivity: +3s206ms

微信自动化小工具

demo() {
    find_element f_l | awk -F\" '{print $4}' | while read e; do
        click "$e"
        location=$(get_text b26)
        echo $e $location
        back
    done
}

appium desktop

学院内部下载地址:http://download.testing-studio.com/appium-desktop/
雪球财经app:https://sj.qq.com/myapp/detail.htm?apkName=com.xueqiu.android

desktop的配置

{
  "platformName": "android",
  "deviceName": "hogwarts",
  "appPackage": "com.xueqiu.android",
  "appActivity": ".view.WelcomeActivityAlias"
}

第一个测试用例

# This sample code uses the Appium python client
# pip install Appium-Python-Client
# Then you can paste this into a file and simply run with Python
from time import sleep

from appium import webdriver


class TestDemo:
    def setup(self):
        caps = {}
        caps["platformName"] = "android"
        caps["deviceName"] = "hogwarts"
        caps["appPackage"] = "com.xueqiu.android"
        caps["appActivity"] = ".view.WelcomeActivityAlias"

        self.driver = webdriver.Remote("http://127.0.0.1:4723/wd/hub", caps)
        self.driver.implicitly_wait(10)

    def test_search(self):
        self.driver.find_element_by_id("tv_agree").click()
        self.driver.find_element_by_id("tv_search").click()
        self.driver.find_element_by_id("search_input_text").send_keys("alibaba")

        assert self.driver.find_element_by_id("name").text == "阿里巴巴"

    def teardown(self):
        sleep(10)
        self.driver.quit()

Appium安装

  • 安装appium,推荐nodejs的LTS版本v10
  • 官方文档的安装方式:
    • 官方方式:npm install -g appium 基本安装不上
    • 使用代理安装:http_proxy=[代理地址] https_proxy=$http_proxy npm install -g appium
  • 淘宝cnpm (最稳定的方法)
    • npm install -g cnpm --registry=https://registry.npm.taobao.org
    • cnpm install -g appium

Appium自动化

capability介绍

  • unicodeKeyboard + resetKeyboard 要输入中文等多国文字
  • autoGrantPermissions 解决app的权限弹框
  • noReset = True 可以保留app的数据,也可以加速
  • dontStopAppOnReset 启动应用的时候,不杀掉已有的app进程

虽然很多人都会提到不建议使用xpath,其实是一种落后的看法。使用相对定位是很容易维护的。很多控件因为没有id,所以xpath是离不开的。xpath只有一个缺点,会比正常的定位慢1-3s

  • 绝对定位xpath:hierarchy/android.widget.FrameLayout/android.widget.LinearLayout/android.widget.FrameLayout/android.view.ViewGroup/android.widget.FrameLayout/android.widget.LinearLayout/android.widget.FrameLayout/android.widget.FrameLayout/android.widget.RelativeLayout/android.view.ViewGroup/android.widget.LinearLayout/android.widget.RelativeLayout[2]/android.widget.LinearLayout/android.widget.RelativeLayout/android.widget.ImageButton
  • 相对路径xpath://*[@resource-id=‘com.xueqiu.android:id/action_message’]
  • 改进版本的相对定位xpath://*[contains(@resource-id, ‘message’)]

定位符的使用

  • id定位
  • accessibility id简称aid
  • xpath

改进版的普通测试用例

# This sample code uses the Appium python client
# pip install Appium-Python-Client
# Then you can paste this into a file and simply run with Python
from time import sleep

from appium import webdriver
from selenium.webdriver.common.keys import Keys


class TestDemo:
    def setup(self):
        caps = {}
        caps["platformName"] = "android"
        caps["deviceName"] = "hogwarts"
        caps["appPackage"] = "com.xueqiu.android"
        caps["appActivity"] = ".view.WelcomeActivityAlias"
        caps['unicodeKeyboard'] = True
        caps['resetKeyboard'] = True
        caps['autoGrantPermissions'] = True
        caps['noReset'] = True

        self.driver = webdriver.Remote("http://127.0.0.1:4723/wd/hub", caps)
        self.driver.implicitly_wait(10)
        # self.driver.find_element_by_id("tv_agree").click()

    def test_search(self):
        self.driver.find_element_by_id("home_search").click()
        self.driver.find_element_by_id("search_input_text").send_keys("alibaba")
        assert self.driver.find_element_by_id("name").text == "阿里巴巴"
        self.driver.find_element_by_id('name').click()
        price = self.driver.find_element_by_id('current_price').text
        assert float(price) > 200

    def teardown(self):
        sleep(5)
        self.driver.quit()

Page Object模式

用例PO改造
